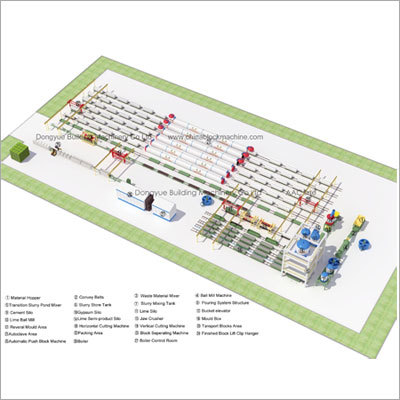

AAC Production Line

AAC Production Line
AAC Production Line
Product Code : 04
Brand Name : DONGYUE MACHINERY
Product Description

We are enlisted as one of the most reliable names engaged in exporting and manufacturing a tested line of AAC Production Line. This is manufactured using quality tested materials, which is acquired from well established vendors. Thus, our offered array is widely in demand due to its vast features. Moreover, it is accessible at most economical prices in time bound manner. Apart from this, other details regarding the AAC Production Line range are as follows:

1. light weight ,Areated concrete density is usually 400-700kg/m3,(according the market in produce ),same as 1/3 of clay block and  1/5 common concrete. So use the Light block can reduce the weight of the build more,and also reduce the  beam of roof and pillar press best then you can see,it can save the material and cost,it also fighting shaking.
2.
     2..keeping temperature It has many are porous,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as  1/4 or 1/5 of clay brick,so it is best  materials now in the world.
have many kinds material,have lowest waste

Main Material:coal ash sand waste mine material coal stonestone dust and other silicon materials.

(1 )Product weight is according to 600kg/m3 to control.
(2 )annual capacity 200,000M3.
(3) set raw  material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.
(4)  water and material rate 0.631
(5)  one mould product 2.88M3
(6)  Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
(7)  casting slurry temperature 38-42 degree
(8)  body quiet stop. Time is 1.5-2.5housr, temperature 50-
90 degree, after quiet stop body strength is 0.15-0.18Mpa
(

9)  Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.

(10).Cement lime fly ash style aerated block raw material proportion
name unit Cement lime fly ash
flash % 65-70
cement % 6-15
lime % 18-25
gypsum % 3-5
Aluminum powder paste(600kg/m3) 1/10000 8
Water & material rate 0.60-0.65
Casting system OC 36-40
Aluminum mixing time S 30-40

(11).  Cement lime Sand style aerated block raw material proportion
Name Unit Cement Lime Sand
Sand % 55-65
Cement % 10-20
Lime % 20-30
Gypsum % 2-3
Aluminum powder paste(600kg/m3) 1/10000 8
Water & material rate 0.65-0.75


1. Sand 69%



Super Grade

First Grade

Qualified product

SiO2

85%

75%

65%

CI-


0.02%

0.03%

0.03%

Mica

0.5%

0.5%

1%

SO3

1%

1%

2%

clay

3%

5%

8%

K2O+Na2O

1.5%

3%

5%

2. Lime 20%

Item

Grade


Super Grade

First Grade

Qualified product

A(CaO+MgO) Quality Fraction %

90

75

65

MgO Quality Fraction %

2

5

8

SiO2 Quality Fraction %

2

5

8

CO2 Quality Fraction %

2

5

7

Digestion speed ,min

5-15

Digestion temperature , °C

60-90

Undigested residue quality fraction ,%

5

10

15

Fineness (0.080 square hole sieve left amount) %

10

15

20
